Fix Proxmox Bootloop Triggered by Problematic PCIE Device and Auto Start VM

I recently purchased an intel SG1 (H3C XG310) GPU and no longer needs my intel DG1 GPU that I use for OpenCL on PVE host. More on that in a later post. So I yanked it out and sold it on Facebook marketplace. I remapped the resource mappings and rebooted my host, and then went to bed.

So far so good, right? Not so much. When I woke up tomorrow, I found my PVE in a broken state. / is read only, and syslog outputs "ext4 journal broken" 10 times every second. Looking into the logs I found my PVE rebooted some several hundred times before this happened. Further investigation found my passed-through Intel B580 somehow crash the the host every time the VM starts. And the VM is set to autostart.

A fix is documented in the next post:

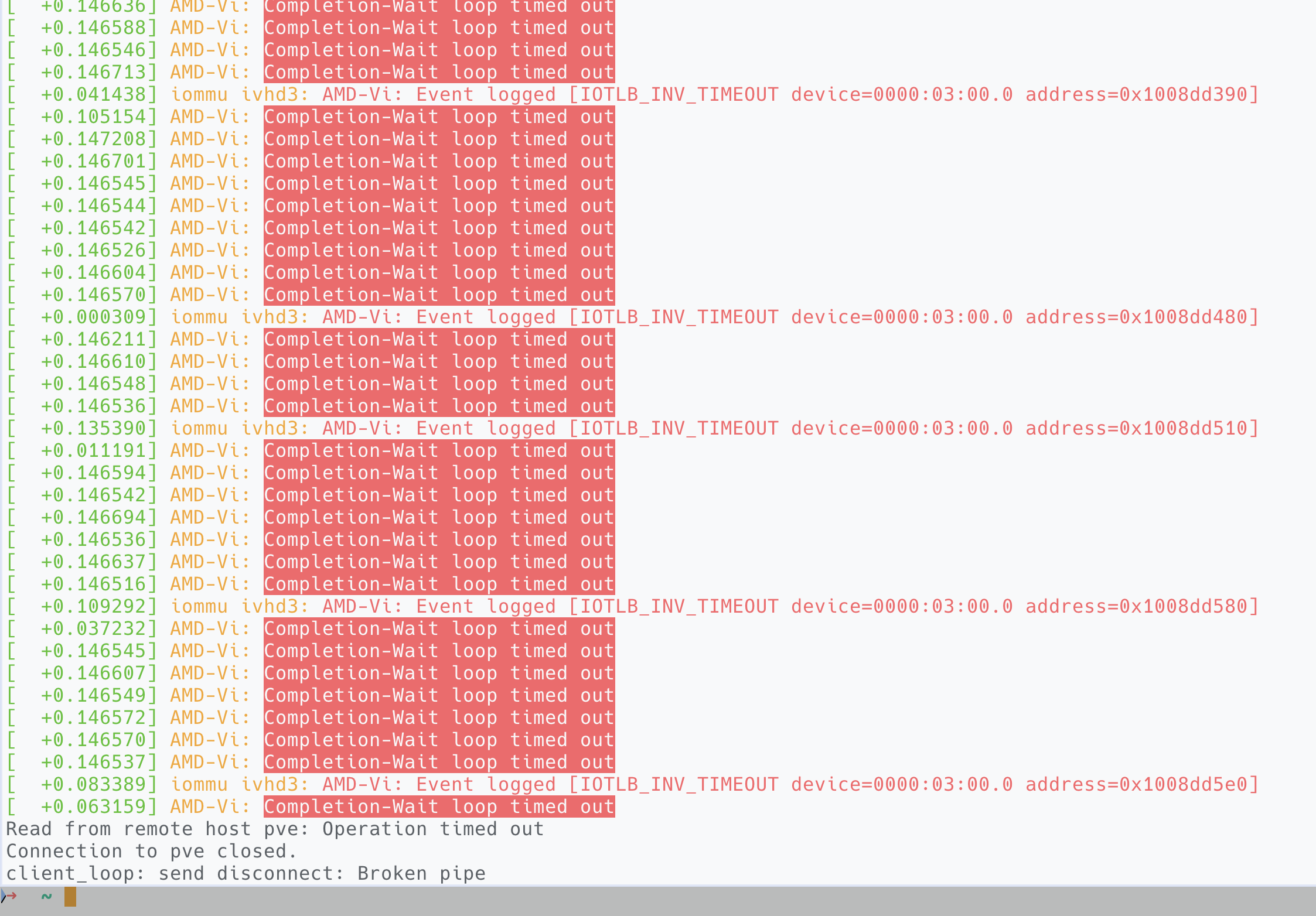

Fix "AMD-Vi: Completion-Wait loop timed out" on EPYC Platform

Well that explains it. I rebooted the host, the ext4 filesystem fixed itself on start. And I was fast enough to systemctl disable pve-guest.service before it crashed again. After that I turned off autostart and fixed the system.

But this time I got lucky, the PVE happened to be smart enough to boot into emergency mode and did not corrupt my filesystem any further. To battle this situation I (rather, GPT) wrote a script to auto disable the qemu-guest service after 3 consecutive boot in a short time.

The Script

The following script:

Proxmox Bootloop Saver

Proxmox Bootloop Saver. GitHub Gist: instantly share code, notes, and snippets.

Gist262588213843476

1. Stores its state in /var/lib/pve-bootloop-saver/
2. In situation of 3 consecutive boots, every boot within 5 min of the last boot, the script will mask the qemu-guest.service from starting, neither automatically or manually. It will also put a txt file in /root to notify the user what it did.
3. When the situation is fixed and we want to the service again, simply execute:

/usr/local/sbin/pve-bootloop-saver.sh --reset

And it will unmask the service. A restart is probably needed to get the system back on track.

How to Setup

1. Put the script above in /usr/local/sbin/pve-bootloop-saver.sh
2. chmod +x /usr/local/sbin/pve-bootloop-saver.sh
3. Add this systemd unit so pve-guest.service will not start until our script is done running.

# /etc/systemd/system/pve-bootloop-saver.service

[Unit]
Description=Proxmox bootloop saver (masks pve-guests.service if system reboots too often)
Before=pve-guests.service

[Service]
Type=oneshot
ExecStart=/usr/local/sbin/pve-bootloop-saver.sh

[Install]
WantedBy=multi-user.target

Then execute:

sudo systemctl daemon-reload
sudo systemctl enable pve-bootloop-saver.service

And ... we are done here. Anytime the system enters a bootloop our script will save the system after 3 rounds.

Testing it works

Simplest testing is to deliberately mess up the settings and trigger a bootloop. If we don't wanna do that, test it by first trigger it thrice:

sudo systemd-run --unit=test-bootloop-1 /usr/local/sbin/pve-bootloop-saver.sh
sudo systemd-run --unit=test-bootloop-2 /usr/local/sbin/pve-bootloop-saver.sh
sudo systemd-run --unit=test-bootloop-3 /usr/local/sbin/pve-bootloop-saver.sh

Check if the pve-guest.service is masked

systemctl is-enabled pve-guests.service
# should say "masked"

If it works, reset it to normal and reboot

sudo /usr/local/sbin/pve-bootloop-saver.sh --reset
systemctl is-enabled pve-guests.service   # should be enabled now
